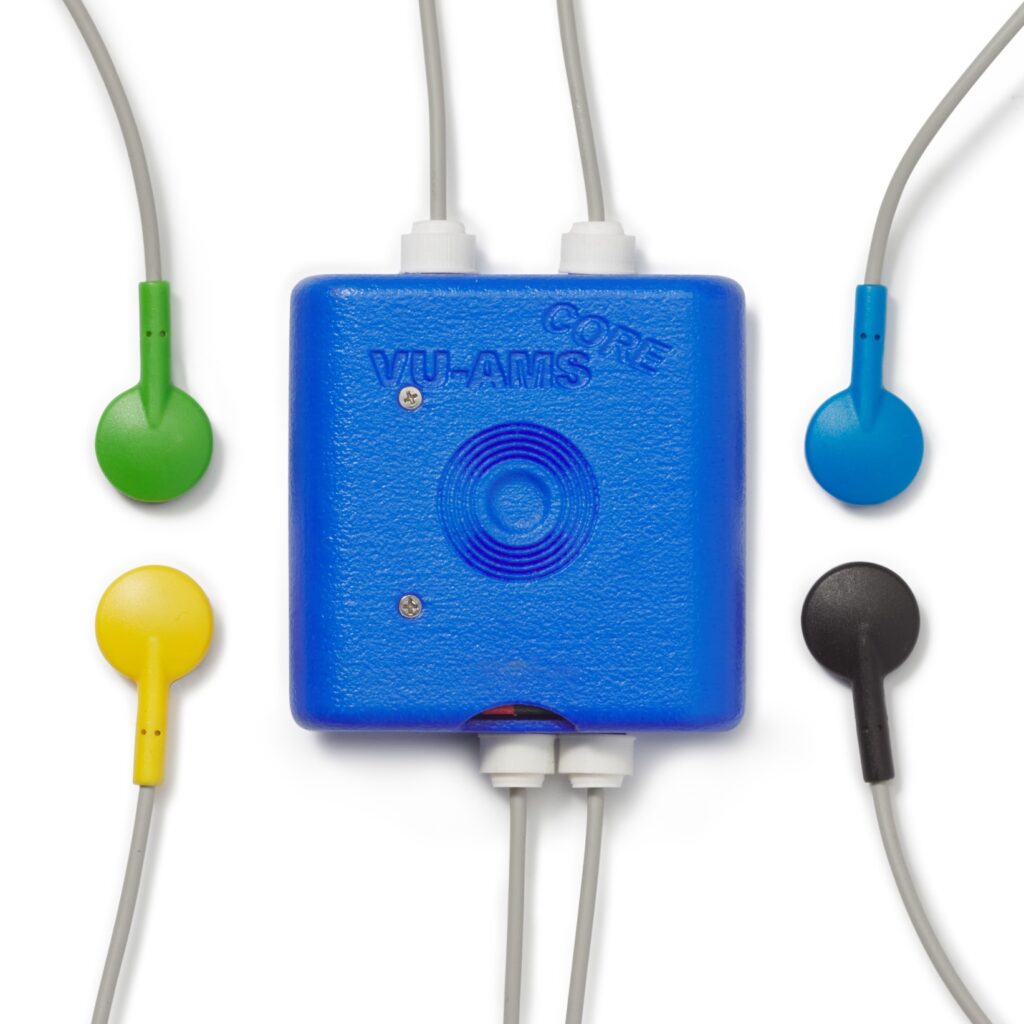

The VU-AMS Core
Collect data effortlessly with 30 years’ worth of research and development in the palm of your hand
Core graphics
Multisensor system
Build a precise physiological participant profile using real-world data with only 5 electrodes
Build a precise physiological participant profile using real-world data with only 5 electrodes
Maximise your research potential with automatic activity detection
Non-invasive and portable
The Core’s compact and lightweight body and electrodes promotes physical flexibility and provide data unobtrusively
Primary Sensors:
+- Electrocardiography (ECG, 1000 Hz)
- Impedance cardiography (ICG, 1000 Hz)
- Triaxial accelerometer (1000 Hz)
- Triaxial gyroscope (1000 Hz)
- Triaxial magnetometer (50 Hz)
Storage & Memory
+Data stored locally on microSD card
Dimensions
+57 x 57 x 17mm, 52g (including body, cables and microSD card)
Secondary Sensors:
+- Air pressure level (5 Hz)
- Temperature of the device (1000Hz)
- Voltage of the current source (1000Hz)
- Timing of the AD Converter (1000Hz)
- Battery voltage (1 Hz BAT)
- Device orientation (50 Hz, Roll, Pitch, Yaw)
Connectivity
+Bluetooth connection to iOS and Android devices
Device benefits
Measure a wide range of variables:
Heart Rate / Inter beat Interval (IBI), Heart Rate Variability (SDNN, RMSSD, IBI power spectrum: HF, LF), Respiratory Sinus Arrhythmia (RSA)
Daily activity measurement:
Capture physiological data during sleep, work, exercise, rest and other daily life activities with up to 30 hours of storage available.
Live data visualisation:
The CoreControl app allows you to view physiological activity in real-time and operate the device remotely using an iOS device. This is useful for participant orientation, activity visualisation in lab-based studies, viewing and setting predetermined markers (by participants and researchers), and monitoring data quality.
Low visibility, high precision:
The VU-AMS Core’s small body and short cables make data collection discreet with minimal risk of data quality loss during active periods.
